EXTREME

With dust and splash-water protection

These extremely stable transport boxes of 3 mm thick alloyed aluminium corrugated sheet metal

are particularly ideal, for example, as pickup truck boxes for craftsmen, building companies and garden or exhibition stand constructors – anywhere that large and bulky objects need to be transported and stowed safely.

SizesOutfitery
EquipmentTechnical specifications

ALUTEC München-Riffelblechboxen im Einsatz

Our practical sizes

Extreme 883
Extreme 883 Art.Nr.: 41883
Volumen: 883
Inner dim.:
1678 x 675 x 730/830
Outer dim.:
1700 x 700 x 750/850
Extreme 470
Extreme 470 Art.Nr.: 41470
Volumen: 470
Inner dim.:
1874 x 500 x 500
Outer dim.:
1896 x 525 x 520
Extreme 375
Extreme 375 Art.Nr.: 41375
Volumen: 375
Inner dim.:
1500 x 500 x 500
Outer dim.:
1522 x 525 x 520
Extreme 312
Extreme 312 Art.Nr.: 41312
Volumen: 312
Inner dim.:
1250 x 500 x 500
Outer dim.:
1272 x 525 x 520
Extreme 250
Extreme 250 Art.Nr.: 41250
Volumen: 250
Inner dim.:
1000 x 500 x 500
Outer dim.:
1022 x 525 x 520
Extreme 234
Extreme 234 Art.Nr.: 41234
Volumen: 234
Inner dim.:
750 x 500 x 625
Outer dim.:
772 x 525 x 645
Extreme 120
Extreme 120 Art.Nr.: 41120
Volumen: 120
Inner dim.:
600 x 400 x 500
Outer dim.:
622 x 425 x 520
Extreme 70
Extreme 70 Art.Nr.: 41070
Volumen: 70
Inner dim.:
500 x 350 x 400
Outer dim.:
522 x 375 x 420
Extreme 46
Extreme 46 Art.Nr.: 41046
Volumen: 46
Inner dim.:
800 x 300 x 190
Outer dim.:
822 x 325 x 210
Extreme 37
Extreme 37 Art.Nr.: 41037
Volumen: 37
Inner dim.:
600 x 250 x 250
Outer dim.:
622 x 275 x 270
Datenblatt
Download
Datenblatt EXTREME

Outfitery

3 mm aluminium corrugated sheet

Made of alloyed, high strength, weatherproof 3 mm aluminium corrugated sheet metal

Feet Extreme

Seams fully welded all the way round and four sturdy feet with M10 internal thread for permanent fixture

Hooded lid Extreme

Hooded lid to prevent the ingress of rain or splash water

Hinges Extreme

Hin­ges, hand­les and clo­sures made of stain­less steel

Safety carrying handles Extreme

Self-fol­ding, high load strength, plas­tic co­ve­r­ed safe­ty car­ry­ing hand­les

Eccentric closures Extreme

Sturdy eccentric closures with ring for padlocks

Lid with tethers Extreme

Extra strong lid with tethers to relieve the load on the hinges (EXTREME 37, EXTREME 70, EXTREME 120, EXTREME 234)

Gas-fil­led struts Extreme

Gas-fil­led struts for easy and se­cu­re opening and clo­sing of the lid (EXTREME 250, EXTREME 312, EXTREME 375, EXTREME 470, EXTREME 883)

rubber gaskets Extreme

Durable rubber gaskets all the way round for effective exclusion of dust and splash-water

Equipment

Wheel set for Extreme-series
Wheel set for Extreme-series

4 castors Ø 100 mm with 2 brakes incl. fittings for fitting to the feet.
Max. payload 200 kg.

Item no. 41000

Pallet feet for Extreme-series
Pallet feet for Extreme-series

4 pallet feet height 100 mm incl. fittings

Item no. 41010

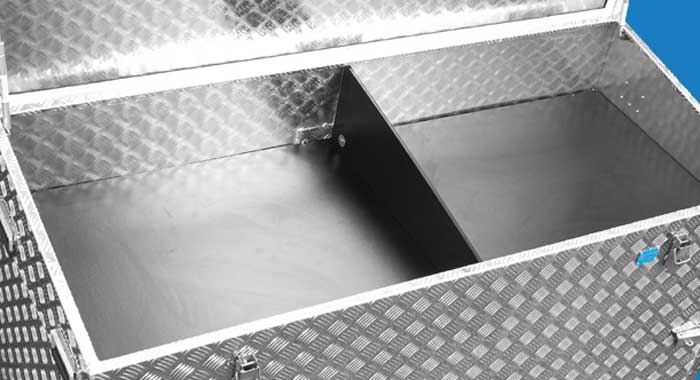

Tool tray for Extreme 883
Tool tray for Extreme 883

2 wooden trays and a partition incl. fittings.

Item no. 41012

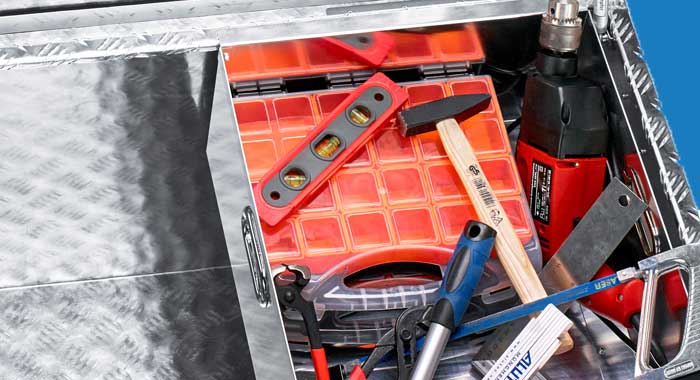

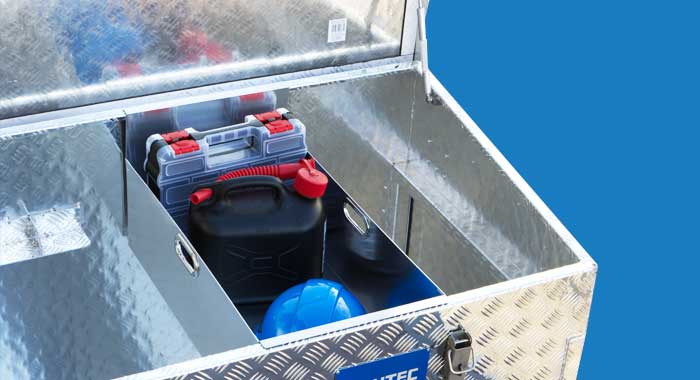

Insert basket
Insert basket

suitable for EXTREME 250 - 470
with 2 handles, made of 1.0 mm aluminum sheet
Internal dimensions: 440 x 400 x 200 mm

Item no. 41015

Technical specifications

Extreme 37
Typ Art.-No. Inner mm
(L x W x H) 		Outer mm
(L x W x H) 		Volume
ltr. 		Weight
kg.
Extreme 883418831678 x 675 x 730/8301700 x 700 x 750/85088347,40
Extreme 470414701874 x 500 x 5001896 x 525 x 52047032,00
Extreme 375413751500 x 500 x 5001522 x 525 x 52037526,70
Extreme 312413121250 x 500 x 5001272 x 525 x 52031222,70
Extreme 250412501000 x 500 x 5001022 x 525 x 52025019,30
Extreme 23441234750 x 500 x 625772 x 525 x 64523417,60
Extreme 12041120600 x 400 x 500622 x 425 x 52012011,70
Extreme 7041070500 x 350 x 400522 x 375 x 420708,60
Extreme 4641046800 x 300 x 190822 x 325 x 210469,00
Extreme 3741037600 x 250 x 250622 x 275 x 270376,70
Clearance dimensions approx. 40 mm less than interior dimensions. Subject to technical and visual changes.
